BLUE CROSS® SILICONE RESUSCITATORS WHITE SERIES

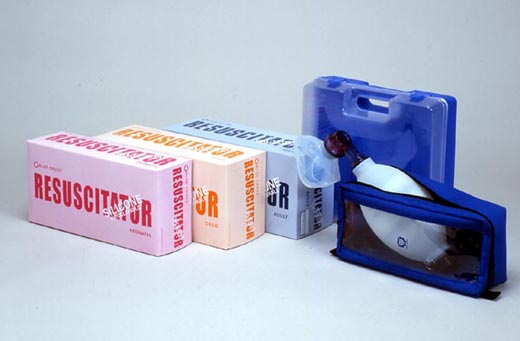

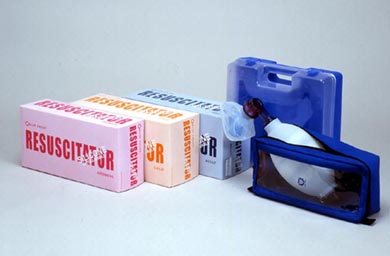

BLUE CROSS SILICONE RESUSCITATORS ■ BLUE CROSS Silicone Resuscitators are a range of Basic Sets and
Complete Sets. They are available in either a Presentation Box, a Soft
Clear Case or a Hard Clear Plastic Case.
Please see information below for details.
● Resuscitators detailed explanation

Resuscitator, Adult BLUE CROSS
SILICONE RESUSCITATOR
ADULT
 		Resuscitator Adult abrw-01

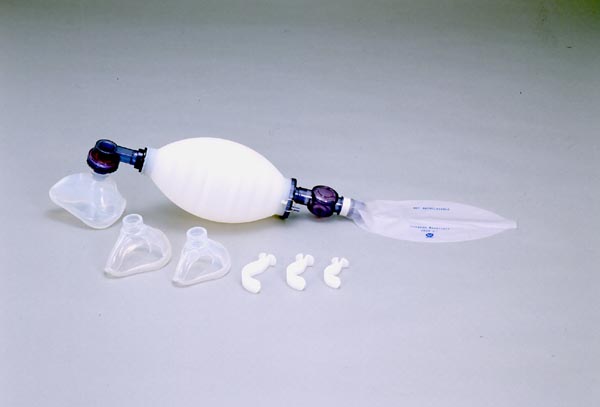

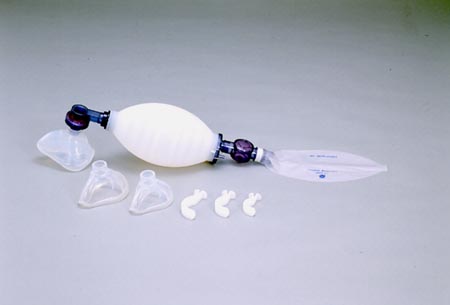

（COMPLETE SET ACRW-33 shown）

Components Basic Sets Complete Sets
T1010130 T1010140 T1010150 T1010160 T1010170 T1010180 T1010190 T1010200 T1010210 T1010220 T1010230
ABW-01 ABRW-00 ABRW-01 ABRW-01S ABRW-01P ACRW-22 ACRW-22S ACRW-22P ACRW-33 ACRW-33S ACRW-33P
BC-2020-RV-A Resuscitation Valve Unite, Adult ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-SBW-A Silicone Resuscitation Bag, Adult ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-IV Inlet Valve Unit ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-RS-V Oxygen Reservoir Valve Unit ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-RS-BA Oxygen Reservoir Bag 2600ml ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-SM-AL Silicone Mask, Adult,Large ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-SM-AM Silicone Mask, Adult,Medium ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-SM-AS Silicone Mask, Adult,Small ◯ ◯ ◯
BC-2020-AW-AL Airway, Adult, Large ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-AW-AM Airway, Adult, Medium ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-AW-AS Airway, Adult, Small ◯ ◯ ◯
BC-01M-TB Soft Cliear Case, Medium ◯ ◯ ◯
BC-2S-TP Emagin Case 32×10.5×30cm ◯ ◯ ◯
0.8kg 0.8kg 0.9kg 0.8kg 1.5kg 0.94kg 0.9kg 1.5kg 1.0kg 0.9kg 1.9kg
BLUE CROSS® SILICONE RESUSCITATORS WHITE SERIES

BLUE CROSS SILICONE RESUSCITATORS ■ BLUE CROSS Silicone Resuscitators are a range of Basic Sets and
Complete Sets. They are available in either a Presentation Box, a Soft
Clear Case or a Hard Clear Plastic Case.
Please see information below for details.
● Resuscitators detailed explanation

Resuscitator Child BLUE CROSS
SILICONE RESUSCITATOR
CHILD
 		Resuscitator child CBRW-01

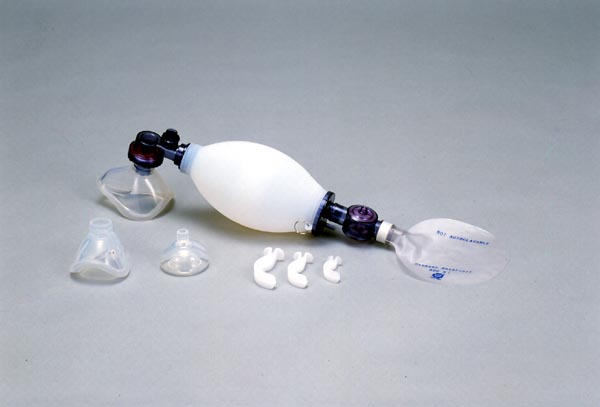

(COMPLETE SET CCRW-33 shown)

Components Basic Sets Complete Sets
T1010240 T1010250 T1010260 T1010270 T1010280 T1010290 T1010300 T1010310 T1010320 T1010330 T1010340
CBW-01 CBRW-00 CBRW-01 CBRW-01S CBRW-01P CCRW-22 CCRW-22S CCRW-22P CCRW-33 CCRW-33S CCRW-33P
BC-2020-RV-CI Resuscitation Valbe Unit,
Child/Infant Combined		 ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-SBW-C Silicone Resuscitation Bag, Child ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-IV Inlet Valve Unit ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-RS-V Oxygen Reservoir Valve Unit ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-RS-BCI Oxygen Reservoir Bag 600ml ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-SM-AM Silicone Mask, Child, Large ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-SM-AS Silicone Mask, Child, Medium ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-SM-IL Silicone Mask, Child, Small ◯ ◯ ◯
BC-2020-AW-AM Airway, Child, Large ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-AW-AS Airway, Child, Medium ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-AW-IL Airway, Child, Small ◯ ◯ ◯
BC-01M-TB Soft Clear Case, Medium ◯ ◯ ◯
BC-2S-TP Emagin Case 32×10.5×30cm ◯ ◯ ◯
0.7kg 0.7kg 0.7kg 0.6kg 1.3kg 0.7kg 0.8kg 1.4kg 0.7kg 0.8kg 1.4kg

BLUE CROSS® SILICONE RESUSCITATORS WHITE SERIES

BLUE CROSS SILICONE RESUSCITATORS ■ BLUE CROSS Silicone Resuscitators are a range of Basic Sets and
Complete Sets. They are available in either a Presentation Box, a Soft
Clear Case or a Hard Clear Plastic Case.
Please see information below for details.
● Resuscitators detailed explanation

Resuscitator Infant BLUE CROSS
SILICONE RESUSCITATOR
INFANT
 		Resuscitator child ICRW-22

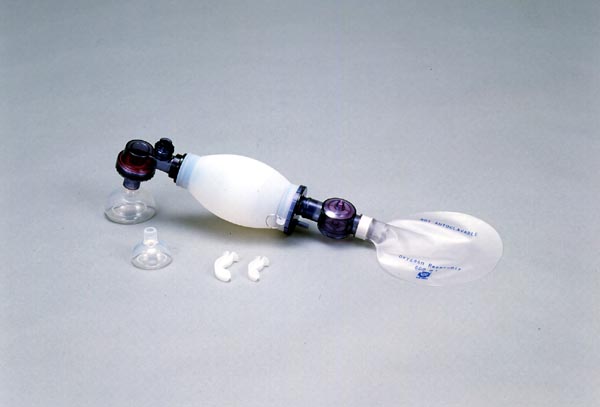

(COMPLETE SET ICRW-22 shown)

Components Basic Sets Complete Sets
T1010350 T1010360 T1010370 T1010380 T1010390 T1010400 T1010410 T1010420
IBW-01 IBRW-00 IBRW-01 IBRW-01S IBRW-01P ICRW-22 ICRW-22S ICRW-22P
BC-2020-RV-CI Resuscitation Valbe Unit, Child/Infant Combined ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-SBW-I Silicone Resuscitation Bag, Infant ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-IV Inlet Valve Unit ◯ ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-RS-V Oxygen Reservoir Valve Unit ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-RS-BCI Oxygen Reservoir Bag 600ml ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-SM-IL Silicone Mask, Infant, Large ◯ ◯ ◯ ◯ ◯ ◯ ◯
BC-2020-SM-IS Silicone Mask, Infant, Medium ◯ ◯ ◯
BC-2020-AW-IL Airway, Infant, Large ◯ ◯ ◯
BC-2020-AW-IS Airway, Infant, Small ◯ ◯ ◯
BC-01M-TB Soft Clear Case, Medium ◯ ◯
BC-2S-TP Emagin Case 32×10.5×30cm ◯ ◯
0.5kg 0.6kg 0.6kg 0.5kg 1.2kg 0.6kg 0.5kg 1.2kg

Resuscitator's Diagrams Silicone Resuscitator Resuscitation Sets Oxygen Resuscitation Sets Optional Items

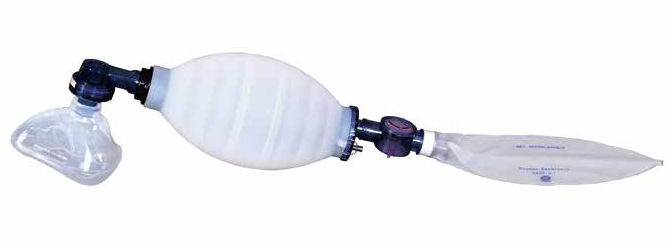

BLUE CROSS® Silicone Resuscitators
BLUE CROSS
New type Silicone Resuscitators are used worldwide by
healthcare professionals and first responders at a wide range of sites - from
emergency treatment in hospitals and ambulances, to military facilities,
schools and factories, to first aid stations and accident sites in the
mountains, at the beach or on board ship.

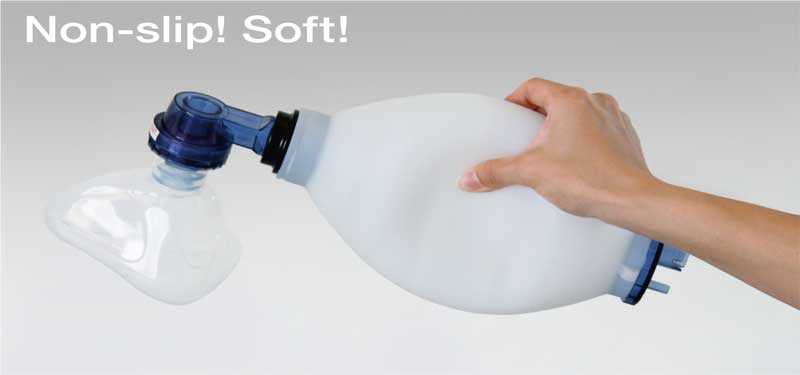

The Resuscitation Bag is easy to use, without operational fatigue, and can be stored compactly

The Resuscitation Bag requires minimum pressure to be compressed and, due to its design, quickly recovers its shape,
so as not to cause operational fatigue, even after extended continuous use.

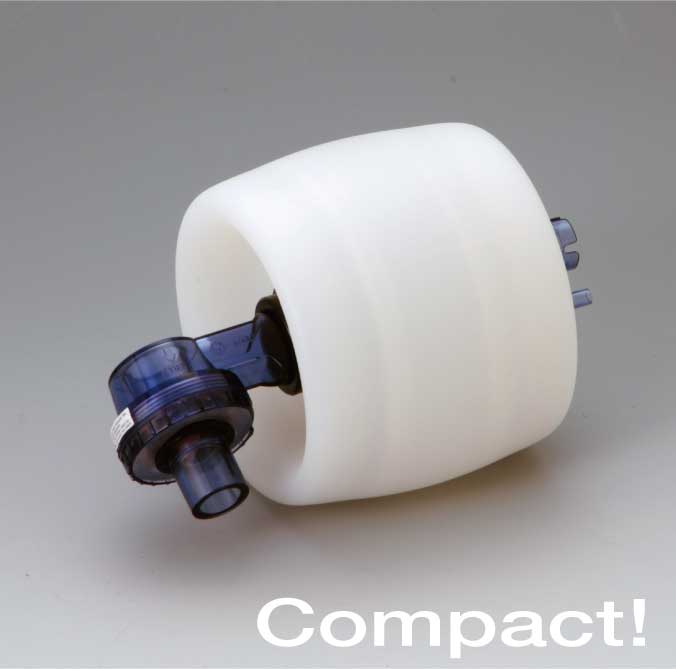

The bag can be folded compactly to fit into a small storage case.

Safety Design - Air Pressure Release Valve for
Child and Infant Resuscitators - 35㎝H2O

The Child/Infant Resuscitation Valve Unit provides an extra
degree of safety by incorporating a Pressure Release Valve to
protect child and infant patients from the risk of excess air
pressure while being resuscitated.


Two independent Inlet Valves

The Resuscitator has two independent inlets,
one for air, and the other for oxygen.

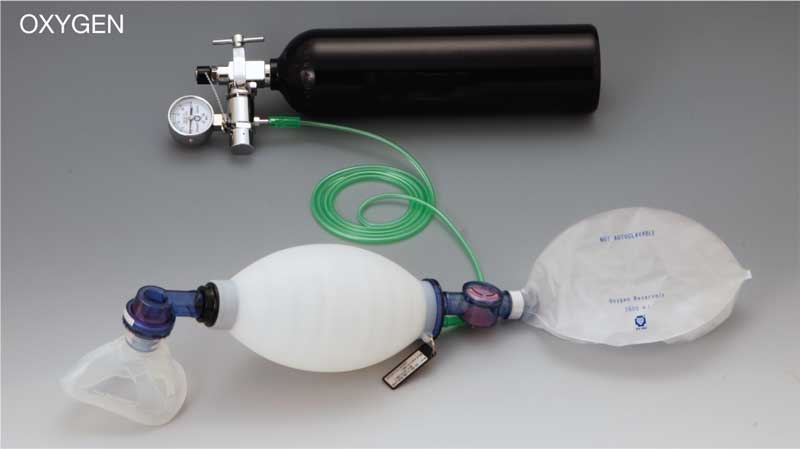

When the Resuscitator is attached to an oxygen supply,
it becomes an Oxygen Resuscitator.

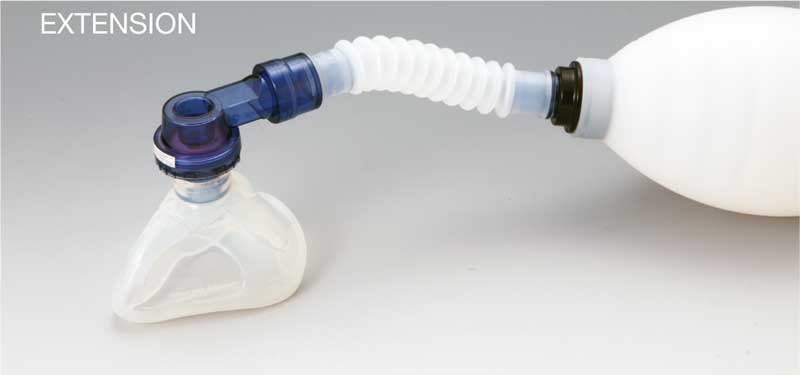

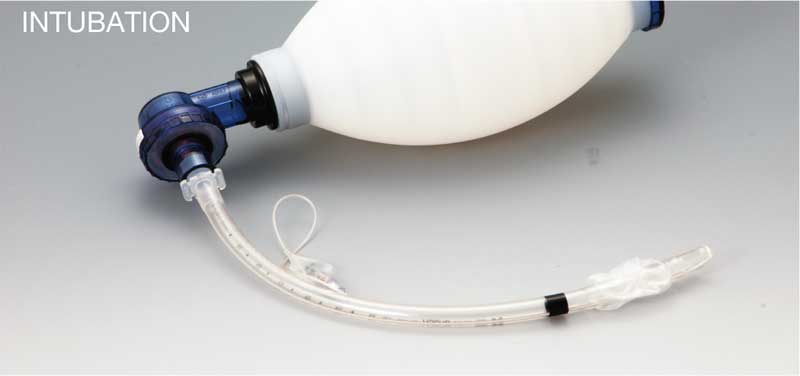

An Endotracheal Tube and a Corrugated Extension Tube can be added to the Resuscitation Valve Unit.

An Endotracheal Tube can be connected to the Resuscitator and if required, an optional Corrugated Extension Tube can also be
attached to the Resuscitator, to ensure the comfort and safety of the patient, even while in transit.

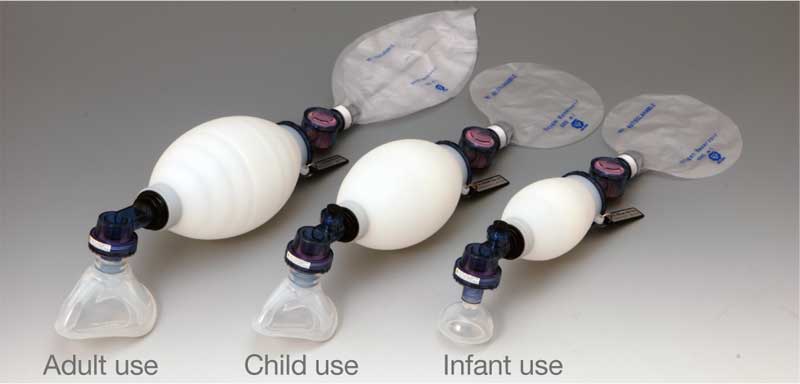

Recommended Patient Weight classification
Patient over 40 kg :Resuscitator, Adult
Patient 10 - 40 kg :Resuscitator, Child
Patient under 5 kg :Resuscitator, Infant
These Resuscitators respond to the needs of the patient.
An Oxygen Reservoir System can supply high-density oxygen.
If the patient starts to breath unassisted, this new design of Resuscitation Valve will adjust,
with minimum resistance, to the patient's needs. If the patient requires high-density oxygen,
an Oxygen Reservoir System Unit can be attached to the Resuscitator,
and if the oxygen supply is insufficient, air for the patient will automatically enter the Resuscitation Bag.


Compliance with ISO 8382 and JIS T7205
The new design of advanced BLUE CROSS Silicone Resuscitators has enhanced performance and reliability.
All equipment complies with the Safety Standards of the International Organization for Standardization 8382 (ISO 8382) and
Japanese Industrial Standards (JIS) Standard Number T7205 for Resuscitators.
・ Data has been obtained from tests in compliance with the standards required by ISO 8382 and JIS T7205.
