BLUE CROSS® Compressor Type Neblizer Nebu-Com® Mini CN-Mini
Small and lightweight, suitable for home use

It does not over heat even after 6 hours continuous use.

Designed for minimal sound and vibration
-suitable for children and the elderly, and use at night.
Filter is se both at inlet and outlet of the air for double safety
Energy sabing model.
The atomizer(Neb-Com kit)effectively 1~8μm particles.

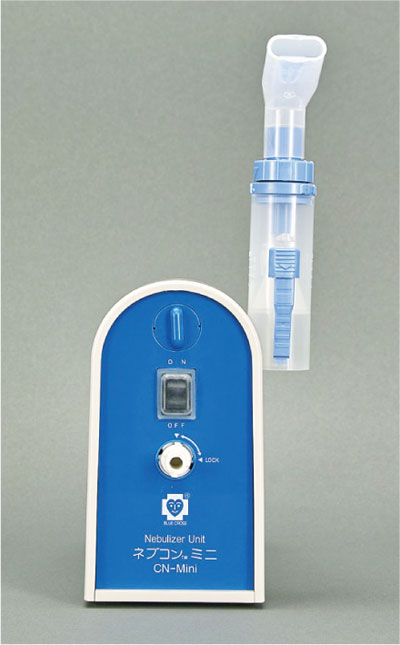

CN-MINI
CN-MINI
Simple operating panel.

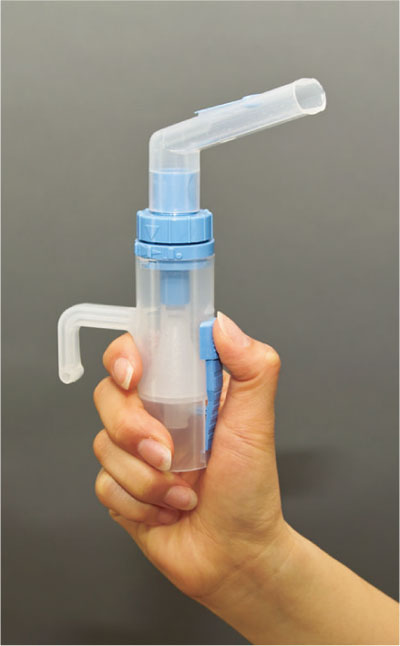

Nebu-Com Kit can be used
when held at an angle, and
the ON/OFF switch can be
done by hand.
CN-MINI
Use with the Mouthpiece
Use with the Mouthpiece
Use with the Mask connected
Use with the Mask connected
Use for children
Use for children


T1410020
CN-Mini
Power Source AC100-120V/AC220V-240V (50/60Hz)
Class ClassⅡ B-Type equipment
Power consumption 30VA (15W)
Max.Nebulizer Pressure 170kPa
Max.Nebulizer Flow Rate 10L/min
Aerosol Flow Rate 0.3mL/min
Average Particle Size 1~8μm
Medication Cup Capacity 8mL
Adequate Medicine Volume 2~8mL
Accessories Nebu-Com Kit/Mask
Unit Size 8.8×16×20cm
Weight 0.98kg
Optional item
Carry Bag
T1820230 BC-01M-NB
Carry Bag for Nebu-Com Mini
Material:Vinyl leather Size:30×11×14cm


NEBU-COM® KIT Refills and Optional Items
The NEBU-COM KIT can be used anywhere, at an angle, without affecting performance.

For aults and children
Average particle size of1~8μm
Handy ON/OFF switch
An effective and reliable neblizer.

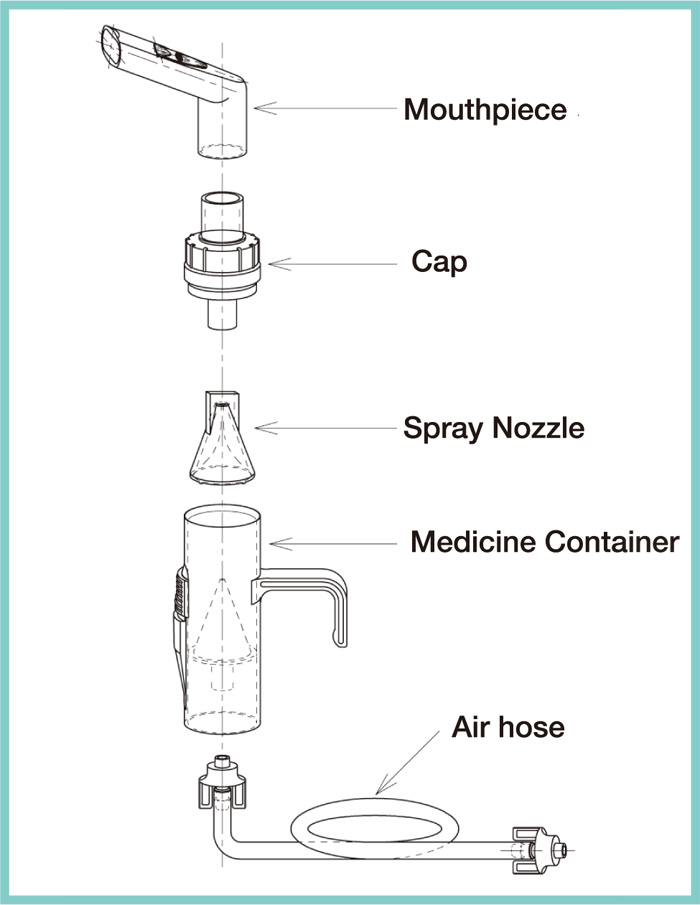

NEBU-COM KIT Diagram

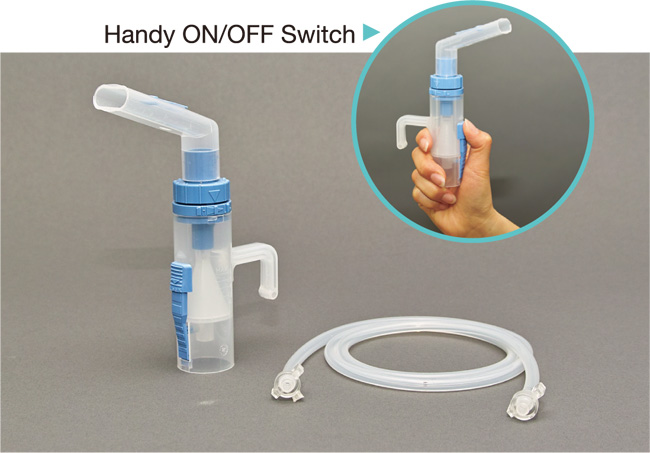

NEBU-COM KIT Diagram Handy ON/OFF Switch
NEBUCOM KIT
マウスピース 送気ホース
Mouthpiece Air Hose

8-1 Mask Large 8-2 Mask Small Filter Set Outlet Filter
Mask Filter Set Outlet Filter


Refills and optional items
T1410040 CN-KT  NEBU-COM KIT (with Air Hose)

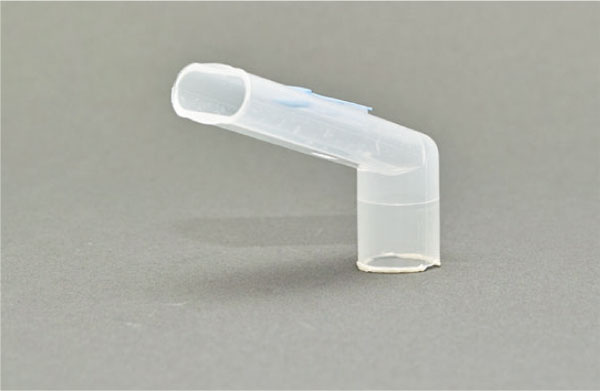

T1420040 CN-MP  Mouthpiece, 2pcs
T1420030 CN-SN  Spray Nozzle, 2pcs

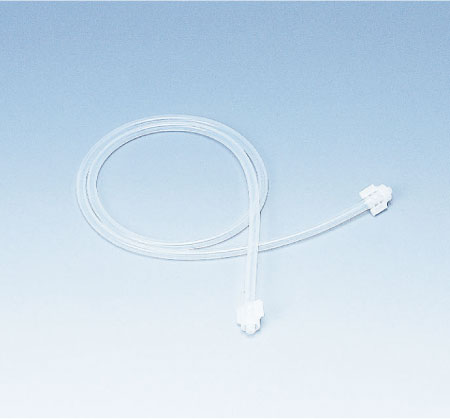

T1420050 CN-VH  Air Hose
T1420060 CN-PH  Piping Hose

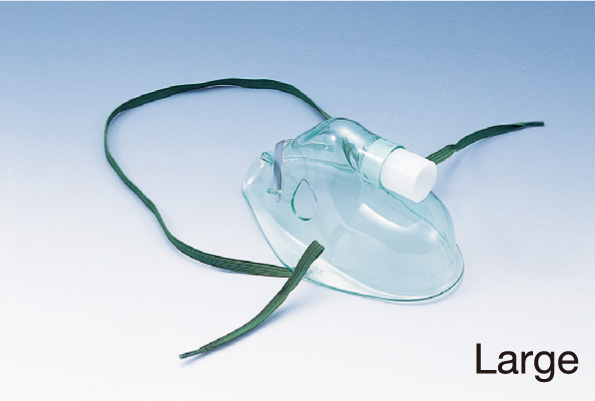

T1410060 BC-8-1  Mask,Large,2pcs

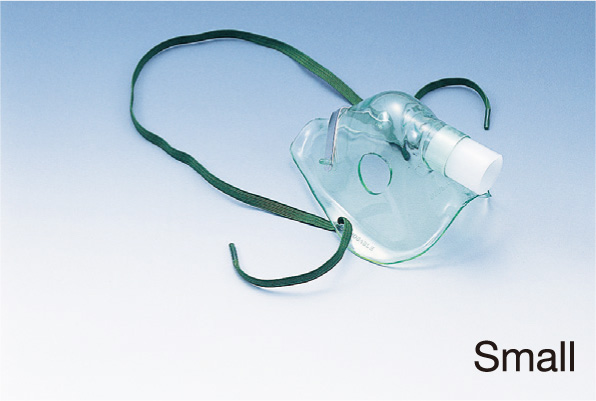

T1410070 BC-8-2  Mask,Small,2pcs

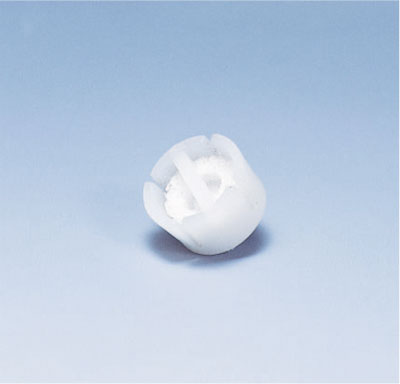

T1320310 AF-ST  Filter Set,5pcs

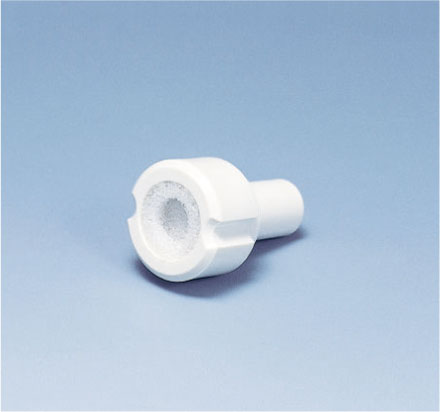

T1420020 AF-OF  Outlet Filter,5Pcs
